Dont let the Enterprise Service Bus lead to Context Bleeding

In this article I would like to discuss bad usage of integration patterns and SOA tools, and why I often favor the Anti-Corruption Layer pattern of Domain Driven Design. I observe that many SOA projects does not end up with something more service oriented, but actually an event bigger ball of mud. Suddenly many more systems must be live, projects slow down and things get more complicated. The ESB becomes One Ring to Rule them All, which is not a good thing.
Why is this?

Good Service Orientation should bring clear separation of concern, easier maintenance, less code, independent deploy and release cycles, more frequent releases, easier sourcing, and a higher degree of flexibility (among others). The idea of a bus (ESB) is good enough, but it does not relieve you from the real challenge; complexity and functional dependency. Where you previously had FTP files separating silos, they now must both be up and running. When things break you have 100.000 broken messages on the bus to clean up. These messages are a long way from home; they break out of context. Probably they are better understood within their domain.

The challenge is to find a design and migration strategy with lower maintenance cost in the long run. You should make things simpler and testable, by using DDD on your system portfolio.
The intention with these integration patterns are good; the Aggregate and Canonical patterns promise encapsulation but often end up with handling complexity outside of its context. That leads to a tough maintenance situation.


The initial stage where silos send and depend on information directly from each other:
Silos supporting and depending on each other

An ESB tries to make things easier
, but the dependency is still there
Secondly the ESB comes to the "rescue". We just put a product inbetween and pretend that we now have loose coupling. We may get technical looser coupling and reuse of services/formats, but the functional dependency is still there. Most probably this is not a situation with less maintenance, you have just introduced more architecture. In most integration scenarios people with deep knowledge of their silo talk to each other, directly. The canonical format supported by an integration team is just a man in the middle, they will strive to understand the complexity behind services and messages. Then your total maintenance organization does not scale, the functional throughput of projects slow down, because the integration team need to know "everything".

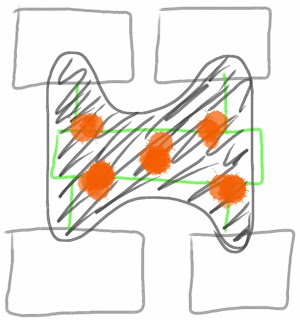

Black Octopus tentacles

There is also another problem with this approach. Most tools (and actually their prescribed usage as taught in class) let the ESB product make adapters that go into the silo. Many silos have boundaries, like CICS, but others offer database connections so that adapters for the ESB actually glue into the implementation (of the silo). Now we are getting into en even more serious maintenance hell. Each silo has a maintenance cycle and organization supporting the complex systems it is. By not involving this organization and not letting this organization support the services they actually offer to the environment, you will have trouble. The organization must know what they silo is being used for. How else are they going to support SLA, or make sure that only consistent data leave the silo? This is illustrated as a black Octopus with tentacles into the systems having different parts of the organization tied up even closer.

Context Bleeding
This very fast leads to context bleeding. Every EBS vendor has tools and repositories for maintaining the Canonical format. The problem with this is that it is maintained outside its domain, and the organization supporting it. Now many Entities and Aggregates are outside their Bounded Context... Or even worse they are replicated outside, endorsed in a more generic representation, where the integration team has put an extra layer of complexity on top of it. This generic representation also hides the ubiquitous language, making communication between organizations even harder. And just to add to this; how testable is it? This is your perfect "big ball of mud". You do not want to handle complexity outside its domain.
It is a much better situation for those with the deep knowhow of the silo to construct and support the services and canonical messages they offer. The integration team should mostly be concerned with structure and not content.

The same can be said about business processes orchestrated outside of their domain; it may get into a "make minor" approach that does not enhance ease of maintenance. Too often there is high coupling between process state and domain state. (see Enterprise Wide Business Process Handling)
Better approach

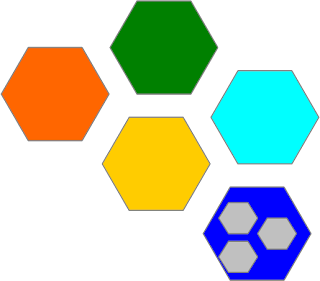

Dark green ACL maintained by each silo
So I think a better approach is to use Domain Driven Design and the Anti Corruption Layer. This pattern better describe the ownership and purpose of integration with another domain, while keeping clear boundaries. Maintenance and release cycle is now aligned with the silos maintenance cycles. I also think there is a better chance for higher level services where systems cooperate. This leads to simpler integration scenarios, illustrated by a slimmer ESB.

This is not complete without emphasizing the importance of functional decomposition between the silos, so that they have a clearer objective in the system portfolio. But this takes time, and often you need an in-between solution. ESB-tools are nice for such ad-hoc, but don't let it be your new legacy. Strive for granular business level services, so that you limit the "chatting" between systems and make usage more understandable (but this standardization is more a business challenge, than an IT challenge). Too many ESB's end up like CRUD repositories; illustrating only an open bleeding wound of the silo.

The objective is: Low Coupling - High Cohesion. Software design big or small - the same rules apply.

Creative Commons License
Dont let the Enterprise Service Bus lead to Context Bleeding by Tormod Varhaugvik is licensed under a Creative Commons Attribution-ShareAlike 4.0 International License.

Tuesday, September 27, 2011

Tax Norways Proof of Concept

Why a Proof of Concept?

Continual Aggregate Hub and Processing
In our Target Architecture there is one central part (we will test out concepts from Continual Aggregate Hub, "Restaurant" and Aggregate Storage) and it has to do with tax and fee calculation. It does collection, assessment and calculation in one scalable architecture, and this has to be flexible as to collecting new types of information and putting new calculations on them. We believe it is unlikely that we find some COTS in this area, as this data and its rules are highly domestic and decided by our fellow politicians.
Our priorities:
  1. Maintenance - Modular, clear and clean functional code
  2. Testable - Full test coverage
  3. Speed - Liner scalable. Cost of HW determine speed, not development time.
Yes we can!
We have seen that there are so many properties in the large scale financial architectures (as the ones John Davies has talked about in several talks over the years) that are similar to ours, that we have to find out if our domain and challenges can be solved with this.
This is really the core of the PoC; we have to play, test and learn what this architecture is like for our domain and how it affects our ability to change. We need to show this to our stakeholders; business, architects, operations, programmers, designer etc. We must have this experience to leverage risk in planning, understand the cost, to be able to communicate between these groups, and to be able to describe in more detail.
In practice we do a full volume test for 2009 and 2010, but with limited amounts of basic data and business rules, and not fully end-to-end. We will tackle the core challenges, with a small rule set, and also have a "version 1" blue-print for new business initiatives we know will be coming. We target 2 years in memory, and assessment and tax calculation at 5000 tps. We target HW costs at 10% of todays level.
It is a playground for new technology. We are testing the domain solved in this type of architecture, and it is not a test of a product. Any acquisition of product will be done later.

Just do it
Late spring this year we opened a bid for participating in this Proof of Concept, where we presented our thoughts about the target architecture (We have gotten a lot of good feedback on this :-) ). EDB/Ergo, Bekk won the bid, and they teamed up with Incept5.
We are starting with Gemfire as the processing architecture, and as much plain vanilla pojo as we can. We will be working on this through January 2012. This will rock!

2012.01.22: The results are here, and will be presented at Software 2012.

Creative Commons License
Tax Norways Proof of Concept by Tormod Varhaugvik is licensed under a Creative Commons Attribution-ShareAlike 4.0 International License.

Thursday, September 22, 2011

Enterprise wide business process handling

(October 2014. This article is updated with the Case Container)
Understanding the requirements, functional and non-functional, is vital when the architecture is defined. The theme in this article is about enterprise wide business process handling. The challenge is to make different types of systems participate in the business work flow and understand what happened for later insight. BPM, Business Process Management, is a huge field with many tools, notation forms, patterns etc. (See process handling in Continual Aggregate Hub and cooperating federated systems). (A system in this text is the same as a Module, although it may reflect that our current systems are not good Modules. We want our current systems to cooperate as well as our new Modules.)
We have chosen to think Domain Driven Design and to elaborate on these main issues:
  • how to automate the business process between cooperating Modules
  • how to ensure that some manual (human) task is done
  • how to achieve high degree of flexibility in changing business processes
  • how to know the current state of a Party
  • how to know what has happened to a Party
  • how to measure efficiency in the business activities over time
  • how to make very different types of systems cooperate
 And some non-functional requirements:
  • how to handle the operational aspects over time (batch vs events)
  • how to best support that a manual task is now automated
  • how to make it testable
  • how to have it scalable
  • how to change and add Services and Modules without downtime
  • how to change process without downtime
  • how to re-run a process, if somethings have failed for some time
  • how to handle orchestration (defined process) and choreography (event drive) side by side
Observations of SOA tool state and of integration patterns
I will not discuss this too much, but just summarize some observations (I'll get back to how in some later blog):
  • In-flight processes is a pain
  • Long lasting processes is a pain (both: software needs update now and then)
  • Often not loose coupling between process and the state of some domain entity. A lot of processes occur and function within the domain ("make-minor" approach by some process-system is not good)
  • Processes are hard to test
  • Scaling and transaction-handling gets complex
  • Tools have too much lock-in
  • The promise of BPEL visual modeling to communicate with business fails
  • The canonical integration pattern often leads to context bleeding and tight coupling
  • The aggregate integration pattern often is a sign of complex integration, that probably should be addressed with a system by itself
  • Business process state is hidden, and history of events is lost or is drowned in technical details
  • Message brokers are great to move messages, but bad in history, and not a good tool in operational flexibility
  • Too many parties are involved so that maintenance gets slow

Our logical 5 level design
Main goal is to have full control of all events that flow between cooperating Modules, but not achieve an uncontrollable event driven system. (An event-driven system may just as well be diagnoses as "attention-deficit/hyperactivity disorder (ADHD)" system.)
  • Enterprise Process Log
    This is purely a log component, with services for registering business and answering queries about them. It has no knowledge of the business process, but of course has some defined keys and types that defines a valid business event (a business activity leads to a business event). It is the Modules that emit domain events to the log component, and the domain defines what the events are. It is a place to store the business level CQRS type of events (or Soft State if you like from BASE), the more detailed events are kept the Modules. Any type of system can emit events either live or in large batches. The implementation effort to send events is little, and the events may be informational and not necessarily used in an automated process. This log will give insight into what happened with a Party. The lifetime principle is taken care of, as this log must be very long lasting. So we want it as simple as possible. (see The BAM Challenge)
  • Global Task-List
    This is a simple stand alone task-list whose sole responsibility is to assign tasks to groups of Case Handlers (CH) that do manual tasks in the enterprise wide domain. The task-list has no knowledge of the overall process. The tasks the task-list receive contain enough information to explain what the task is, and to redirect the CH to the right GUI for doing his task. The tasks are defined and maintained in the Module that has a need for manual work, but dispatched to this common task list. These tasks are tasks that are well defined in a work-flow. When a task is done, or no longer relevant (the Modules that owns the task decide), then the task is removed from the task list.
  • Process Flow Automation
    When we first have the events in the event log, automating the next step is quite easy and can be done in a lightweight manner. A simple Message Driven Bean may forward the message in a event driven manner via some JMS-queue, or a large legacy system may query for a file once a week because that is the best operational situation for it (operational flexibility is also discussed in CDH). Also events may be logged that only come in operational use a year later, making maintenance flexible, and history robust.
  • Case Container
    This is discussed in this article about a generic Case Container representing all Cases handled in our domain. Its purpose to to contain the Case with all its metadata, the process state and references to all incoming and outgoing xml-documents.
  • Case Handling System (super domain)
    This is usually called Case Handling and consists of a case which is outside the existing Modules or systems, and that need the completion of many formal sub-processes, but at startup of the process it is not possible to foresee how the case will be solved. This is typically where know business process ends, and a more ad-hoc process is applicable. Also this system support the collection of different types of information relevant for such case-to-case systems. This information may very well be external information collected in a manual matter.
    (by 2014 we have not gone any further into this part of the overall design. It seems that the CAH and the Case Container is sufficient)
Above is the logical design, and this is what we think we need. You might say it follows a hub-spoke design, where the Modules are the spokes and these 4 elements comprise the hub. These are all 4 discrete components that interact in a services oriented manner, with each other and with other Modules or systems. The main idea is that this will enhance maintenance and reduce the need for customizing COTS.

Ill 1. Basic flow and service orientation
Illustration 1. Just to show a fire-and-forget situation (green) where the Tax Calculation and Collection are interested in House events. Tax Calculation wants them live, and the processing forwards the event, while Collection every 2 months, via file, and then issues service requests (yellow) to Party to get details. The EPL event holds a reference to the Case Container. The notified Module then uses the Case Container to open all relevant information for this Case and the process state the Case is in.

Ill 2. Application layer interacts with EWPH
Illustration 2. Show a Module of DDD where  the application layer interacts with the enterprise wide process handling. The green line show how the Case Container is shipped to the Module where its reference are opened by the Application layer and sent to the Domain layer for handling. The Case container is really the container that it is in the logistics world; bringing a complete set of good from one place to another.

We are implementing this with REST and XML, where feeds play an important part in transporting events and data. URI represent addresses for Modules, and are linked to specific Case Container Types.

We do not mandate the usage of the Task-list. If there is some need for task-list internal to a Module that is more efficient for the users that handles tasks solely in a Module, it is OK when it gives a better maintenance in the long run.
Also we do not mandate what technology that does different work in the Process flow automation, it may be Message Driven Beans forwarding to some queue, Mule, Camel, BPEL for some orchestrated process, or simple Query to file.

Design and overview
Of course you still have to have a good design and understanding of the business processes. And it must be there to communicate between business and IT (BPMN is great for this). But as in other areas of systems development: Design is to communicate between people, and implementations is to communicate to machines. Therefore a combined design-implementation (eg. BPEL) will have a hard time achieving both.
The business process is not fragmented, but I argue that the implementation of the business process is best handled in the above-mentioned manner; The process will sometimes occur within a Module (system), and sometimes in-between.

Creative Commons License
Enterprise wide business process handling by Tormod Varhaugvik is licensed under a Creative Commons Attribution-ShareAlike 4.0 International License.

Tuesday, September 20, 2011

The BAM challenge

One interesting issue arose when we looked into the requirements for Business Activity Monitoring (BAM). The main task to answer is: "How is the organization performing?", "Are we more effective than last year?".  Key Performance Indicators (KPI) is a well established jargon, but how to achieve them?
A KPI can only be answered over time, and for large governmental organizations, that's a long time. Just reorganizing may take a year, and making the new organization perform better takes longer than that.

To measure you have to have some measuring points, and they are to be compared over time. It is not about a business performance measuring tool by itself, it is about what business activities where performed, and how much effort some business entity put into one such activity.

There are three challenges in this:
  • First a reorganizing usually affects how account dimensions in the economical systems are organized, that makes the accounts discontinuous and disturbs the measurement of the effort put in. There must be defined some long lasting Business Effort measured in cost (Business Cost, BC). When the account dimensions are defined, they must also map to this BC, so that we keep continuity.
    There are challenges to this; "How much does an IT system cost?", "What is the price of this automated task". (Many organizations have a hard time identifying this).
  • Secondly the Business Activity (BA) itself over time is performed in different IT systems or done manually. From experience with performance tuning, I believe it is obvious that the IT systems must support a long lasting BA that survives various implementations of that activity. That is what the Enterprise Process Log (see Enterprise Wide Process Handling) is all about. This is where we collect and keep the BA's.
  • The BC and BA must have a comparable period of time.
The BAM-tool is not the solution by itself, and we don't want too much tied up on some SOA implementation. Also BAM-tools are often concerned with what happens on the ESB, there are so many other places that may emit BA's and BC's. The solution must be simple and must last long.
KPI1=BC1/BA1 for a period
KPI2=BC2/BA2 for a period
In our domain a BA would be "Number of tax statements processed" or "Complaints handled" during some time period. The BC would be "Cost of people and systems for assessing tax statements", and "Cost of complaint department", during the same time period.

We will collect BA's from the Enterprise Process Log, and use our data warehouse for the compilation with the BC's and the analysis. The analytics might be in Excel, although we may buy something for this analysis and reporting.
It is the long lasting measuring points and a standardized period of time that is the real value.
